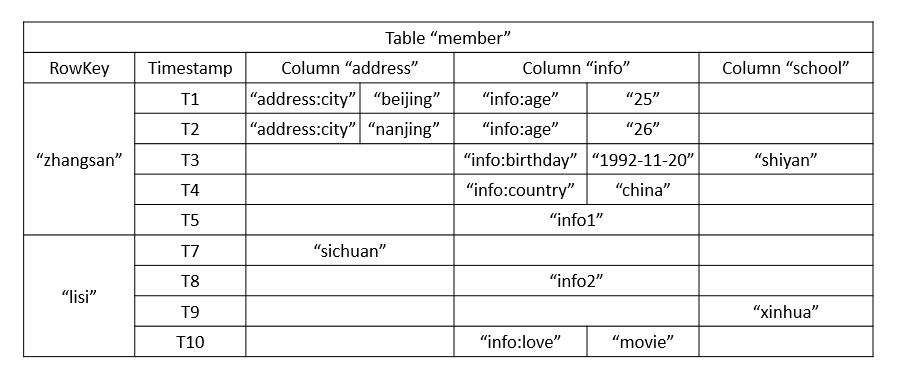

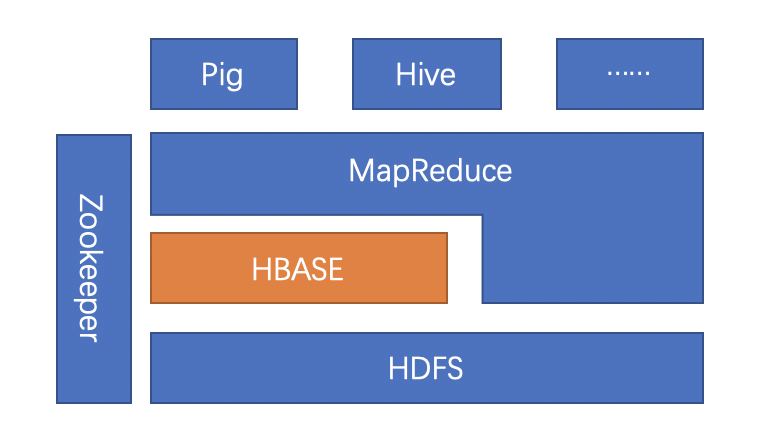

> For the complete documentation index, see [llms.txt](https://jun-wang.gitbook.io/learnjava/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://jun-wang.gitbook.io/learnjava/ji-shu-xue-xi/da-shu-ju/hadoop-zhi-hbase.md). # Hadoop之HBASE ## 一、HBASE简介 HBase是一个开源的、分布式的，多版本的，面向列的，半结构化的NoSql数据库，提供高性能的随机读写结构化数据的能力。它可以直接使用本地文件系统，也可以使用Hadoop的HDFS文件存储系统。不过，为了提高数据的可靠性和系统的健壮性，并且发挥HBase处理大数据的能力，使用HDFS作为文件存储系统才更为稳妥。 HBase存储的数据从逻辑上来看就像一张很大的表，并且它的数据列可以根据需要动态地增加。除此之外，每个单元（cell，由行和列所确定的位置）中的数据又可以具有多个版本（通过时间戳来区别）。从下图可以看出，HBase还具有这样的特点：它向下提供了存储，向上提供了运算。另外，在HBase之上还可以使用Hadoop的MapReduce计算模型来并行处理大规模数据，这也是它具有强大性能的核心所在。它将数据存储与并行计算完美地结合在一起。 ![](/files/-M7h5abtKJhsXJYoL3Va) **HBase 和 HDFS** | HDFS | HBase | | ----------------------- | ------------------------------------------------ | | HDFS是适于存储大容量文件的分布式文件系统。 | HBase是建立在HDFS之上的数据库。 | | HDFS不支持快速单独记录查找。 | HBase提供在较大的表快速查找。 | | 它提供了高延迟批量处理;没有批处理概念。 | 它提供了数十亿条记录低延迟访问单个行记录（随机存取）。 | | 它提供的数据只能顺序访问。 | HBase内部使用哈希表和提供随机接入，并且其存储索引，可将在HDFS文件中的数据进行快速查找。 | ## 二、HBASE表结构 HBASE表具有以下特点： * 大：一个表可以有上亿行，上百万列 * 面向列：面向列(族)的存储和权限控制，列(族)独立检索。 * 稀疏：对于为空(null)的列，并不占用存储空间，因此，表可以设计的非常稀疏。 HBase以表的形式存储数据。表有行和列组成。列划分为若干个列族(row family)。下面是HBASE表的逻辑视图： ![](/files/-M7h5abunr5SjtQb2jXX) 在shell客户端展示： ``` > scan 'member' ROW COLUMN+CELL lisi column=address:, timestamp=1567757931802, value=sichuan lisi column=info:, timestamp=1567757982455, value=info2 lisi column=info:love, timestamp=1567758039091, value=movie lisi column=school:, timestamp=1567758005941, value=xinhua zhangsan column=address:city, timestamp=1567755403595, value=beijing zhangsan column=info:, timestamp=1567755827530, value=info1 zhangsan column=info:age, timestamp=1567756662127, value=26 zhangsan column=info:birthday, timestamp=1567755398376, value=1993-11-20 zhangsan column=info:country, timestamp=1567755402535, value=china zhangsan column=school:, timestamp=1567757294341, value=shiyan 2 row(s) Took 0.0945 seconds ``` 下面依次介绍这些结构： * Row key：用来检索记录的主键，类似key-value结构的key。访问hbase table的行，只有三种方式： * 通过单个row key访问； * 通过row key的range； * 全表扫描； * 列族：hbase表中的每个列，都属于某个列族，列族属于表结构（必须在使用表之前定义），列不属于（插入数据的时候可以随时添加列），比如上面的**info**，**address**，**school**这些属于列族，**info:age**，**info:love**这些属于列。 * Cell：row key和列以及时间戳唯一确定的单元，用来存储真实的数据，cell中的数据没有类型，全部是字节码形式存储。 * 时间戳：每个cell中保存着同一份数据的多个版本，版本通过时间戳来索引。为了避免数据存在过多版本造成的的管理 (包括存贮和索引)负担，hbase提供了两种数据版本回收方式。一是保存数据的最后n个版本，二是保存最近一段时间内的版本（比如最近七天）。用户可以针对每个列族进行设置。 ## 三、安装运行HBASE ``` wget http://apache.01link.hk/hbase/2.2.0/hbase-2.2.0-bin.tar.gz tar -zxvf hbase-2.2.0-bin.tar.gz cd hbase-2.2.0 vim conf/hbase-site.xml ＜configuration＞ hbase.rootdir file:///tmp/hbase-${user.name}/hbase ＜/configuration＞ # 单机模式运行，使用的是本次文件存储。不依赖Hadoop ./bin/start-hbase.sh # 查看进程 jps 9758 HMaster # 启动成功后可以在 http://localhost:16010 访问hbase的web页面 # 停止Hbase服务 ./bin/stop-hbase.sh # 进入HBASE shell ./bin/hbase shell HBase Shell Use "help" to get list of supported commands. Use "exit" to quit this interactive shell. For Reference, please visit: http://hbase.apache.org/2.0/book.html#shell Version 2.2.0, rUnknown, Tue Jun 11 04:30:30 UTC 2019 Took 0.0128 seconds hbase(main):001:0> ``` ## 四、shell DDL操作 ``` # 建表 > create 'member','member_id','address','info' Created table member Took 1.6592 seconds => Hbase::Table - member # 列出所有表 > list TABLE member 1 row(s) Took 0.1501 seconds => ["member"] # 列出表描述 > describe 'member' Table member is ENABLED member COLUMN FAMILIES DESCRIPTION {NAME => 'address', VERSIONS => '1', EVICT_BLOCKS_ON_CLOSE => 'false', NEW_VERSION_BEHAVIOR => 'false', KEEP_DELETED_CELLS => 'FALSE', CACHE_DATA_ON_WRITE => 'false', DATA_BLOCK_ENCODING => 'NO NE', TTL => 'FOREVER', MIN_VERSIONS => '0', REPLICATION_SCOPE => '0', BLOOMFILTER => 'ROW', CACHE_INDEX_ON_WRITE => 'false', IN_MEMORY => 'false', CACHE_BLOOMS_ON_WRITE => 'false', PREFETCH_BLO CKS_ON_OPEN => 'false', COMPRESSION => 'NONE', BLOCKCACHE => 'true', BLOCKSIZE => '65536'} {NAME => 'info', VERSIONS => '1', EVICT_BLOCKS_ON_CLOSE => 'false', NEW_VERSION_BEHAVIOR => 'false', KEEP_DELETED_CELLS => 'FALSE', CACHE_DATA_ON_WRITE => 'false', DATA_BLOCK_ENCODING => 'NONE' , TTL => 'FOREVER', MIN_VERSIONS => '0', REPLICATION_SCOPE => '0', BLOOMFILTER => 'ROW', CACHE_INDEX_ON_WRITE => 'false', IN_MEMORY => 'false', CACHE_BLOOMS_ON_WRITE => 'false', PREFETCH_BLOCKS _ON_OPEN => 'false', COMPRESSION => 'NONE', BLOCKCACHE => 'true', BLOCKSIZE => '65536'} {NAME => 'member_id', VERSIONS => '1', EVICT_BLOCKS_ON_CLOSE => 'false', NEW_VERSION_BEHAVIOR => 'false', KEEP_DELETED_CELLS => 'FALSE', CACHE_DATA_ON_WRITE => 'false', DATA_BLOCK_ENCODING => ' NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', REPLICATION_SCOPE => '0', BLOOMFILTER => 'ROW', CACHE_INDEX_ON_WRITE => 'false', IN_MEMORY => 'false', CACHE_BLOOMS_ON_WRITE => 'false', PREFETCH_B LOCKS_ON_OPEN => 'false', COMPRESSION => 'NONE', BLOCKCACHE => 'true', BLOCKSIZE => '65536'} 3 row(s) QUOTAS 0 row(s) Took 0.6478 seconds # 删除一个列族，alter，disable，enable > alter 'member',{NAME=>'member_id',METHOD=>'delete'} # 在用describe 查看表会发现只有两个列族了 # 删除一个表,首先要先disable这个表 > disable 'member' > drop 'member' # 表是否存在 > exists 'member' # 判断表是否enable > is_enabled 'member' # 判断表是否disable > is_disabled 'member' ``` ## 五、shell DML操作 ``` # 插入数据 put'member','zhangsan','info:age','24' put'member','zhangsan','info:birthday','1993-11-20' put'member','zhangsan','info:country','china' put'member','zhangsan','address:city','beijing' put'member','lisi','info:birthday','1998-09-09' put'member','lisi','info:favotite','movie' put'member','lisi','address:city','beijing' # 获取一个id的所有数据 > get'member','zhangsan' COLUMN CELL address:city timestamp=1567754003312, value=beijing info:age timestamp=1567753903167, value=24 info:birthday timestamp=1567753950339, value=1993-11-20 info:country timestamp=1567753964169, value=china 1 row(s) Took 0.1351 seconds # 获取一个id，一个列族的所有数据 > get'member','zhangsan','info' COLUMN CELL info:age timestamp=1567753903167, value=24 info:birthday timestamp=1567753950339, value=1993-11-20 info:country timestamp=1567753964169, value=china 1 row(s) Took 0.0455 seconds # 获取一个id，一个列族中一个列的所有数据 > get'member','zhangsan','info:age' COLUMN CELL info:age timestamp=1567753903167, value=24 1 row(s) Took 0.0364 seconds # 更新一条记录 > put'member','zhangsan','info:age','25' > get'member','zhangsan','info:age' COLUMN CELL info:age timestamp=1567754315161, value=25 1 row(s) Took 0.0491 seconds # 通过timestamp来获取指定版本的数据 > get'member','zhangsan',{COLUMN=>'info:age',TIMESTAMP=>1567753903167} COLUMN CELL info:age timestamp=1567753903167, value=24 1 row(s) Took 0.0342 seconds # 全表扫描 > scan 'member' ROW COLUMN+CELL lisi column=address:city, timestamp=1567754078391, value=beijing lisi column=info:birthday, timestamp=1567754038812, value=1998-09-09 lisi column=info:favotite, timestamp=1567754057750, value=movie zhangsan column=address:city, timestamp=1567754003312, value=beijing zhangsan column=info:age, timestamp=1567754315161, value=25 zhangsan column=info:birthday, timestamp=1567753950339, value=1993-11-20 zhangsan column=info:country, timestamp=1567753964169, value=china 2 row(s) Took 0.1000 seconds # 删除指定字段 > delete'member','zhangsan','info:age' # 这个很有意思，如果有两个版本的数据，那么只会删除最新的一个版本，当再次查询的时候结果就是上一个版本的 > get'member','zhangsan','info:age' COLUMN CELL info:age timestamp=1567753903167, value=24 1 row(s) Took 0.0454 seconds # 再次执行delete就能把当前版本删除 > delete'member','zhangsan','info:age' > get'member','zhangsan','info:age' COLUMN CELL 0 row(s) Took 0.0166 seconds # 删除整行 > deleteall'member','lisi' Took 0.0235 seconds # 查询表中有多少行 > count'member' 1 row(s) Took 0.3753 seconds => 1 # 给"zhangsan"这个id增加'info:age'字段，并使用counter实现递增 > incr 'member','zhangsan','info:age' COUNTER VALUE = 1 Took 0.0948 seconds > get 'member','zhangsan','info:age' COLUMN CELL info:age timestamp=1567755056584, value=\x00\x00\x00\x00\x00\x00\x00\x01 1 row(s) Took 0.0504 seconds > incr 'member','zhangsan','info:age' COUNTER VALUE = 2 Took 0.0211 seconds > get 'member','zhangsan','info:age' COLUMN CELL info:age timestamp=1567755133527, value=\x00\x00\x00\x00\x00\x00\x00\x02 1 row(s) Took 0.0479 seconds # 获取当前count的值 > get_counter'member','zhangsan','info:age' COUNTER VALUE = 2 Took 0.0145 seconds # 清空整张表 > truncate 'member' Truncating 'member' table (it may take a while): Disabling table... Truncating table... Took 2.1687 seconds # 如何查看多个版本的数据，首先需要更新表结构，因为默认只保存一个版本数据，我们将保存的版本数设置为3 > alter'member',{NAME=>'info',VERSIONS=>3} > put'member','zhangsan','info:age','26' > scan 'member',{COLUMN=>'info:age',VERSIONS=>3} ROW COLUMN+CELL zhangsan column=info:age, timestamp=1567756662127, value=26 zhangsan column=info:age, timestamp=1567756297089, value=25 1 row(s) Took 0.0361 seconds > get 'member','zhangsan',{COLUMN=>'info',VERSIONS=>3} COLUMN CELL info: timestamp=1567755827530, value=info1 info:age timestamp=1567756662127, value=26 info:age timestamp=1567756297089, value=25 info:birthday timestamp=1567755398376, value=1993-11-20 info:country timestamp=1567755402535, value=china 1 row(s) Took 0.0622 seconds ``` ## 六、遇到的问题 **问题1：** 运行hbase shell时报错： ``` ./bin/hbase shell 2019-09-06 11:03:21,079 WARN [main] util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable HBase Shell Use "help" to get list of supported commands. Use "exit" to quit this interactive shell. For Reference, please visit: http://hbase.apache.org/2.0/book.html#shell Version 2.2.0, rUnknown, Tue Jun 11 04:30:30 UTC 2019 Took 0.0080 seconds NotImplementedError: fstat unimplemented unsupported or native support failed to load; see http://wiki.jruby.org/Native-Libraries initialize at org/jruby/RubyIO.java:1013 open at org/jruby/RubyIO.java:1154 initialize at uri:classloader:/META-INF/jruby.home/lib/ruby/stdlib/irb/input-method.rb:141 initialize at uri:classloader:/META-INF/jruby.home/lib/ruby/stdlib/irb/context.rb:70 initialize at uri:classloader:/META-INF/jruby.home/lib/ruby/stdlib/irb.rb:426 initialize at /home/wangjun/software/hbase-2.2.0/lib/ruby/irb/hirb.rb:47 start at /home/wangjun/software/hbase-2.2.0/bin/../bin/hirb.rb:207
at /home/wangjun/software/hbase-2.2.0/bin/../bin/hirb.rb:219 ``` 解决方案： `Unable to load native-hadoop library for your platform... using builtin-java classes where applicable`这个问题只需要修改`conf/hbase-env.sh`，加入： ``` export LD_LIBRARY_PATH=${hadoop_home}/lib/native:$LD_LIBRARY_PATH ``` ${hadoop\_home}为你的hadoop的安装路径。 `NotImplementedError: fstat unimplemented unsupported or native support failed to load`这个问题的解决方案： ``` sudo apt-get install jruby -y sudo apt-get install asciidoctor -y ``` > 参考： > > > >
