# 线程状态及其转换

## 一、线程状态

Java中定义线程的状态有6种，可以查看Thread类的State枚举：

```java
public static enum State
  {
    NEW,  RUNNABLE,  BLOCKED,  WAITING,  TIMED_WAITING,  TERMINATED;

    private State() {}
  }
```

1. 初始（NEW）：新创建了一个线程对象，还没调用start方法；
2. 运行（RUNNABLE）：java线程中将就绪（ready）和运行中（running）统称为运行（RUNNABLE）。线程创建后调用了该对象的start方法，此时处于就绪状态，当获得CPU时间片后变为运行中状态；
3. 阻塞（BLOCKED）：表现线程阻塞于锁；
4. 等待（WAITING）：进入该状态的线程需要等待其他线程做出一些特定动作（通知或中断）；
5. 超时等待（TIMED\_WAITING）：该状态不同于WAITING，它可以在指定时间后自行返回；
6. 终止（TERMINATED）：表示该线程已经执行完毕。

## 二、线程状态转换

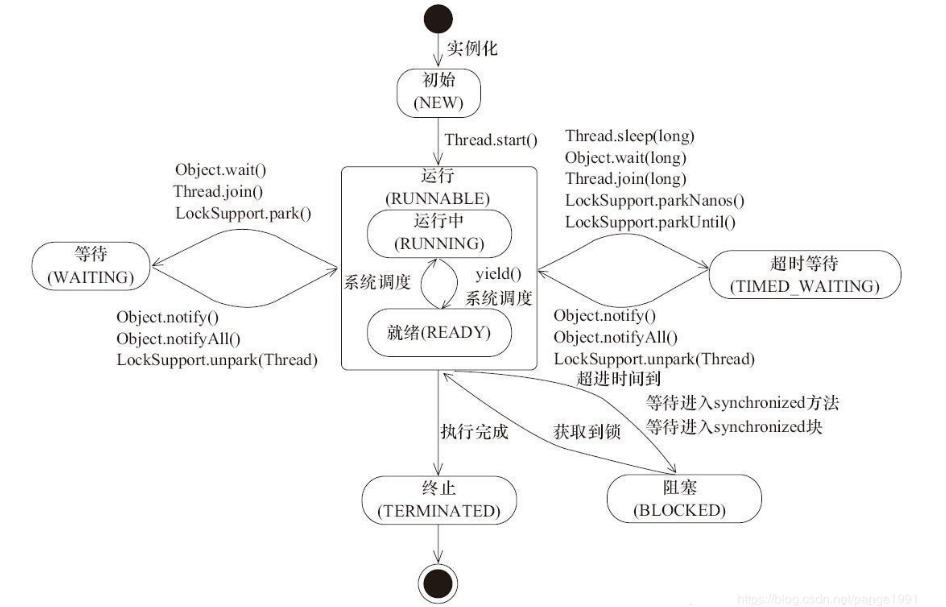

来看一张线程状态转换图：

![](/files/-M7h5bX1vzU55bbf4S-o)

下面从代码实例看线程的各个状态：

### 2.1 超时等待

调用`sleep`，`wait`，`join`这些加上时间参数的情况就会进入超时等待，表示等待了指定的时间后就不等待了。

```java
public class Test {
    public static void main(String[] args) throws Exception {
        System.out.println("start");
        Thread.sleep(100000);
        System.out.println("end");
    }
}
```

通过Java VisualVM打印线程dump可以看到此线程处于`TIMED_WAITING`状态：

```
...
"main" #1 prio=5 os_prio=0 tid=0x00000000055b3800 nid=0x4e8c waiting on condition [0x000000000558f000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
        at java.lang.Thread.sleep(Native Method)
        at Test.main(Test.java:4)

   Locked ownable synchronizers:
        - None
...
```

### 2.2 等待

调用`wait`，`join`这些不加时间参数的情况就会进入等待，表示一直等待直到被触发继续执行。

```java
public class Test {
    public static void main(String[] args) throws Exception {
        Thread1 t = new Thread1();
        t.start();
        t.join();
    }

    static class Thread1 extends Thread {
        @Override
        public void run() {
            System.out.println("start");
            try {
                Thread.sleep(100000);
            } catch (InterruptedException e) {}
            System.out.println("end");
        }
    }
}
```

同样通过线程dump可以看到主线程处于`WAITING状态`，子线程处于`TIMED_WAITING`状态：

```
...
"Thread-0" #11 prio=5 os_prio=0 tid=0x0000000020bf7000 nid=0x4f94 waiting on condition [0x000000002189f000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
        at java.lang.Thread.sleep(Native Method)
        at Test$Thread1.run(Test.java:13)

   Locked ownable synchronizers:
        - None
...
"main" #1 prio=5 os_prio=0 tid=0x0000000004f63800 nid=0x431c in Object.wait() [0x0000000004eef000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x000000076b6e0898> (a Test$Thread1)
        at java.lang.Thread.join(Unknown Source)
        - locked <0x000000076b6e0898> (a Test$Thread1)
        at java.lang.Thread.join(Unknown Source)
        at Test.main(Test.java:5)

   Locked ownable synchronizers:
        - None
...
```

下面演示wait方法导致的等待状态：

```java
public class Test {
    public static int i = 0;
    public static void main(String[] args) throws Exception {
        Thread1 t = new Thread1();
        t.start();
        synchronized (t) {
            System.out.println("等待子线程");
            t.wait();
        }
        System.out.println("主线程结束");
    }

    static class Thread1 extends Thread {
        @Override
        public void run() {
            synchronized (this) {
                for (int i = 0; i < 10; i++) {
                    try {
                        System.out.println(i);
                        Thread.sleep(1000);
                    } catch (InterruptedException e) {
                    }
                }
                notify();
            }
        }
    }

}
```

通过线程堆栈观察，主线程同样处于等待WAITING状态：

```
...
"main" #1 prio=5 os_prio=0 tid=0x0000000005983800 nid=0xb54 in Object.wait() [0x00000000058df000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x000000076b6e0aa8> (a Test$Thread1)
        at java.lang.Object.wait(Unknown Source)
        at Test.main(Test.java:8)
        - locked <0x000000076b6e0aa8> (a Test$Thread1)

   Locked ownable synchronizers:
        - None
...
```

### 2.3 阻塞

```java
public class Test {
    public static void main(String[] args) throws Exception {
        Thread1 t = new Thread1();
        t.start();
        test();
    }

    static class Thread1 extends Thread {
        @Override
        public void run() {
            test();
        }
    }

    static synchronized void test() {
        System.out.println(Thread.currentThread().getName() + " -- start");
        try {
            Thread.sleep(100000);
        } catch (InterruptedException e) {}
        System.out.println(Thread.currentThread().getName() + " -- end");
    }
}
```

通过线程dump可以看到子线程处于阻塞（BLOCKED）状态，主线程处于超时等待（TIMED\_WAITING）状态：

```
...
"Thread-0" #11 prio=5 os_prio=0 tid=0x0000000020ef1800 nid=0x4df4 waiting for monitor entry [0x0000000021b9f000]
   java.lang.Thread.State: BLOCKED (on object monitor)
        at Test.test(Test.java:16)
        - waiting to lock <0x000000076b6dea88> (a java.lang.Class for Test)
        at Test$Thread1.run(Test.java:11)

   Locked ownable synchronizers:
        - None
...
"main" #1 prio=5 os_prio=0 tid=0x00000000051e3800 nid=0x3ee8 waiting on condition [0x000000000517f000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
        at java.lang.Thread.sleep(Native Method)
        at Test.test(Test.java:18)
        - locked <0x000000076b6dea88> (a java.lang.Class for Test)
        at Test.main(Test.java:5)

   Locked ownable synchronizers:
        - None
...
```

## 三、几种方法的对比

1. Thead.sleep(long millis)：一定是当前线程调用此方法，当前线程进入TIMED\_WAITING状态，但不释放对象锁，millis后线程自动苏醒进入就绪状态。作用：给其它线程执行机会的最佳方式。
2. Thread.yield()：一定是当前线程调用此方法，当前线程放弃获取的CPU时间片，但不释放锁资源，由运行状态变为就绪状态，让OS再次选择线程。作用：让相同优先级的线程轮流执行，但并不保证一定会轮流执行。实际中无法保证yield()达到让步目的，因为让步的线程还有可能被线程调度程序再次选中。Thread.yield()不会导致阻塞。该方法与sleep()类似，只是不能由用户指定暂停多长时间。
3. obj.join()/obj.join(long millis)：当前线程里调用其它线程T的join方法，当前线程进入WAITING/TIMED\_WAITING状态，当前线程不会释放已经持有的对象锁。线程T执行完毕或者millis时间到，当前线程一般情况下进入RUNNABLE状态，也有可能进入BLOCKED状态（因为join是基于wait实现的）。
4. obj.wait()/obj.wait(long millis)：当前线程调用对象的wait()方法，当前线程释放对象锁，进入等待队列。依靠notify()/notifyAll()唤醒或者wait(long timeout) timeout时间到自动唤醒。
5. obj.notify()：唤醒在此对象监视器上等待的单个线程，选择是任意性的。notifyAll()唤醒在此对象监视器上等待的所有线程。notify，notifyAll和wait一起使用，用于协调多个线程对共享数据的存取，所以必须在synchronized语句块内使用，也就是说，调用wait()，notify()和notifyAll()的任务在调用这些方法前必须拥有对象的锁。
6. LockSupport.park()/LockSupport.parkNanos(long nanos),LockSupport.parkUntil(long deadlines)：当前线程进入WAITING/TIMED\_WAITING状态。对比wait方法,不需要获得锁就可以让线程进入WAITING/TIMED\_WAITING状态，需要通过LockSupport.unpark(Thread thread)唤醒。

> 参考：
>
> Java线程的6种状态及切换：<https://blog.csdn.net/pange1991/article/details/53860651>


---
